5032mm溫補晶振X1G005231002300用于無線模塊應用

來源：金洛鑫瀏覽：- 發布日期：2022-09-19 16:35:19【大中小】

分享到：

晶振在電子信息產業中的應用非常普遍，晶振被應用于包括網絡設備、消費電子、移動通訊、可穿戴、汽車電子等等領域

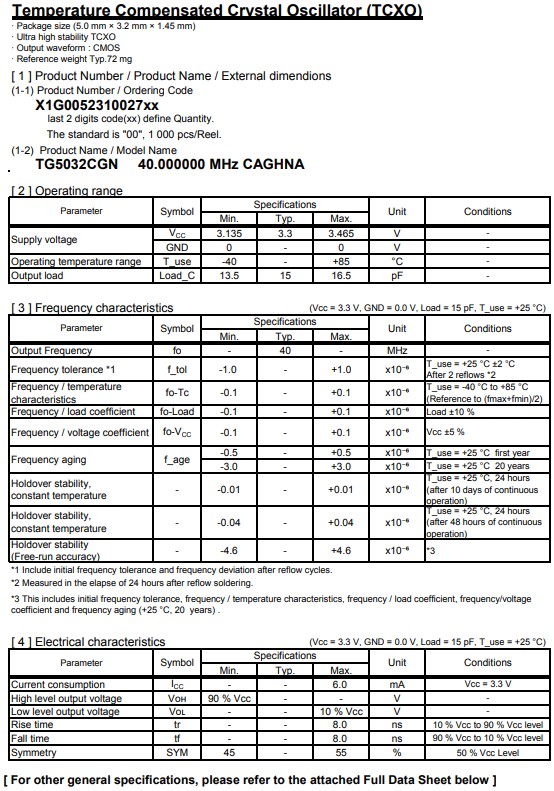

愛普生晶振TG5032CGN，是一款超高穩定性溫補晶體振蕩器，支持CMOS輸出電平，小體積尺寸5.0x3.2mm有源晶振，10腳貼片晶振，電源電壓:2.375V至3.63V，頻率范圍:10MHz至40MHz，具有小尺寸，輕薄型，低抖動，低功耗，低相位噪聲，低損耗，低耗能，高穩定性等特點。該款有源晶體振蕩器，可以在G：-40℃至+85℃的溫度內穩定工作，無鉛，符合歐盟RoHS指令，被廣泛應用于小型基站，Stratum3，SyncE，IEEE1588，網絡系統，車載電子，無線模塊，小型便捷式設備等。

5032mm溫補晶振X1G005231002300用于無線模塊應用

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	精度	工作溫度
X1G005231000400	TG5032CGN	20.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231000500	TG5032CGN	24.576000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231000900	TG5032CGN	25.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001000	TG5032CGN	24.576000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001100	TG5032CGN	25.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001200	TG5032CGN	12.800000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001300	TG5032CGN	20.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001500	TG5032CGN	20.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001600	TG5032CGN	25.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001700	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231001900	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002000	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002300	TG5032CGN	25.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002500	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231002600	TG5032CGN	40.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C

X1G005231002900	TG5032CGN	40.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003000	TG5032CGN	38.880000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003100	TG5032CGN	38.880000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003200	TG5032CGN	19.200000MHz	5.00x3.20x1.45mm	CMOS	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003300	TG5032CGN	19.200000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003400	TG5032CGN	20.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003500	TG5032CGN	25.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003600	TG5032CGN	19.440000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003700	TG5032CGN	30.720000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231003900	TG5032CGN	24.576000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004100	TG5032CGN	40.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004200	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004300	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004400	TG5032CGN	40.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004600	TG5032CGN	10.000000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004700	TG5032CGN	24.576000MHz	5.00x3.20x1.45mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005231004800	TG5032CGN	40.000000MHz	5.00x3.20x1.45mm	CMOS	2.375 to 2.625 V	+/-1.0 ppm	-40 to ++85 °C

5032mm溫補晶振X1G005231002300用于無線模塊應用

現代電子技術日新月異的發展,使得石英晶體振蕩器廣泛應用于現代通信,導航,測量等領域的電子設備中;工程實際應用中許多設備都工作在溫度范圍變化較大的環境中,由于石英晶體諧振器自身特殊的物理特性,溫度的變化會導致晶體振蕩器的頻率發生偏移.此時晶體振蕩器就不能為設備提供穩定時鐘頻率,導致工作異常,而經過溫度補償?shù)?a href="http://www.sxncwy.com/OSCillator.html" title="石英晶體振蕩器" target="_blank">石英晶體振蕩器彌補了這一缺陷,從而其應用更加廣泛.
