ECS-2520SMV-250-FP-TR晶體振蕩器非常適合物聯網應用

來源：金洛鑫瀏覽：- 發布日期：2023-02-15 15:30:54【大中小】

分享到：

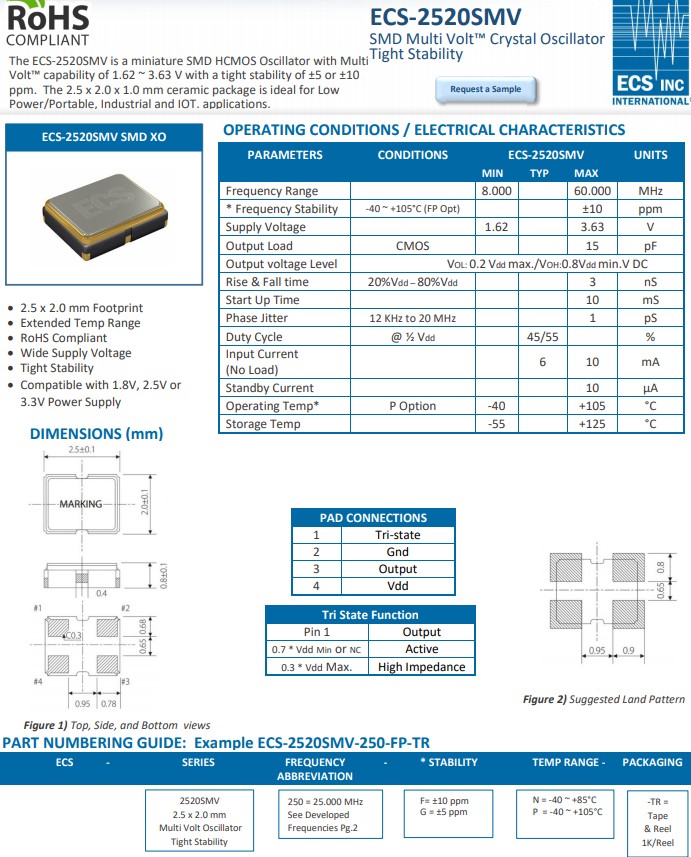

ECS晶振ECS-2520SMV系列是一款微型SMD HCMOS晶體振蕩器，低功耗、固定頻率、低抖動、MultiVolt表面貼裝石英晶體振蕩器。為節省電路板空間，采用小體積尺寸2.5x2.0x1.2mm陶瓷封裝四腳貼片晶振。寬電源電壓1.62V至3.63V，工作溫度范圍-40℃至+105℃，MultiVolt特性允許客戶將同一器件用于多種設計，從而降低認證要求并減少庫存，穩定度為±5或10ppm，符合RoHS標準，非常適合低功耗/便攜式、工業和物聯網應用。ECS-2520SMV-250-FP-TR晶體振蕩器非常適合物聯網應用

ECS-2520SMV-250-FP-TR晶體振蕩器非常適合物聯網應用

特點:
小體積尺寸：2.5x2.0mm四腳貼片晶振
1.62V至3.63V多電壓
兼容1.8V、2.5V或3.3V電源
低抖動：1 pS
符合RoHS 2和REACH標準
MSL 1號
鉛飾面金
FN選項:10ppm，-40℃至+85℃
FP選項:10ppm，-40℃至+105℃
GP選項:5ppm，-40℃至+105℃
應用于：物聯網，存儲設備，商業現貨(COTS)，航行，醫療(非維持生命)，移動設備，產業的，無線設備，測試設備，通用微處理器，IP攝像機

原廠代碼	品牌	有源晶振	頻率	工作溫度
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S25-500-FN-TR	ECS Crystal	ECS-2520S	50MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-100-FN-TR	ECS Crystal	ECS-2520S	10MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-120-FN-TR	ECS Crystal	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-160-FN-TR	ECS Crystal	ECS-2520S	16MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-240-FN-TR	ECS Crystal	ECS-2520S	24MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-250-FN-TR	ECS Crystal	ECS-2520S	25MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-260-FN-TR	ECS Crystal	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS石英晶振	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C
ECS-2520S18-320-FN-TR	ECS Crystal	ECS-2520S	32MHz	-40°C ~ 85°C

圖片	編碼	頻率	頻率穩定性	工作溫度
	ECS-2520SMV-100-FP-TR	10 MHz	±10ppm	-40°C ~ +105°C
	ECS-2520SMV-120-FP-TR	12 MHz	±10ppm	-40°C ~ +105°C
	ECS-2520SMV-160-FP-TR	16 MHz	±10ppm	-40°C ~ +105°C
	ECS-2520SMV-192-FP-TR	19.2 MHz	±10ppm	-40°C ~ +105°C
	ECS-2520SMV-300-FN-TR	30 MHz	±10ppm	-40°C ~ +85°C
