如今在晶振的采購和咨詢活動中,編碼和代碼的使用已經非常廣泛,很多用戶都識得編碼的重要性,因?yàn)樗梢源硪活w完整而準確的晶體晶振,即使你對要采購的產品幾乎完全不懂,只要有編碼一樣可以買到正確的產品.之前金洛鑫電子已經介紹了京瓷公司的石英晶體系列原廠編碼,近年來Kyocera晶體振蕩器也越來越受歡迎,如KC3225K40.0000C1GE00貼片晶振系列已被廣泛應用到軍事,航空航天,船舶呼叫系統,雷達導航,工業,汽車,精密儀器儀表,醫療器械等高端產品.

Kyocera晶體振蕩器KC3225K40.0000C1GE00系列編碼講解

在對KC3225K40.0000C1GE00晶振進行講解之前,我們可以先來了解下這個編碼的系列料號,通常Kyocera品牌的編碼,會把料號放在最前面,也就是KC3225K這個型號.它是日本京セラ株式會社旗下石英晶體振蕩器模塊的,擁有超小型,超薄型SMD型封裝,接縫密封技術生產使其可靠性高,CMOS輸出邏輯,標準電壓+1.8V~+5.0V.屬于低電流消耗,低相位噪聲型高性能振蕩器產品.工作溫度根據不同的產品要求可選-10℃~+70℃,-40℃~+85℃,-40℃~+105℃,可以適應比較惡劣的環境.

京瓷晶振KC3225K的頻率范圍是1.500MHz~160.000MHz,意味著這顆料號擁有多種不同的規格,KC3225K40.0000C1GE00我們可以仔細來看下這條編碼,在系列料號后面的數字代表的是這個頻率范圍內,40.000MHz的這個頻點.

Kyocera晶體振蕩器KC3225K40.0000C1GE00系列編碼講解

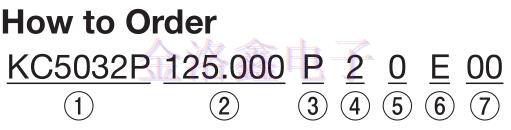

標注了①的是該系列的型號,②指的是該貼片晶振頻率,因?yàn)槊恳粭l編碼的頻率都是固定的,標注③的是振蕩器的輸出類型,常見的輸出邏輯主要有CMOS,HCMOS,LVDS,LV-PECL,SCL,LVCMOS,削峰正弦波和方波等,用不同的英文字母代替.后面的④則是電源電壓的意思,現在的有源晶振電壓基本都是+1.8V,+2.5V,+2.8V,+3.0V,+3.3V和+5.0V等,基本上沒有產品使用更大的電壓了,因?yàn)樵降偷碾妷翰拍芙档凸?/span>.⑤指的是有源晶振的頻率公差也就是頻率穩定度,標準⑥的是對稱/INH功能(45/55％,待機),最后⑦的意義并不大,只是客戶特殊型號的后綴,或者產品的包裝數量規格.
