Q-Tech太空級多輸出CMOS振蕩器突破極端環境的時鐘基準技術

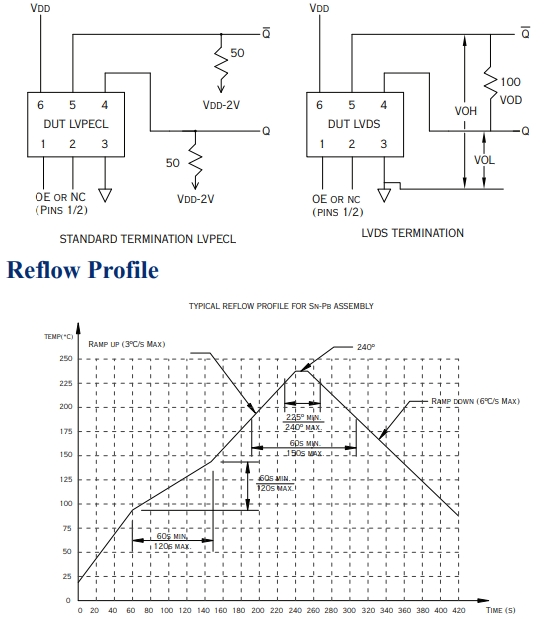

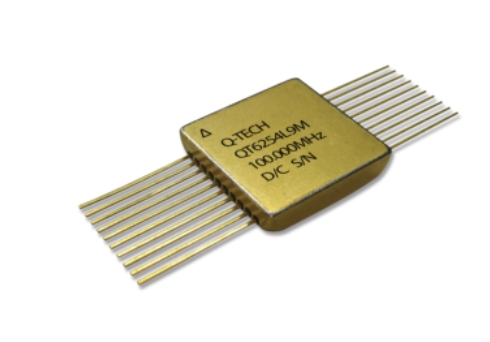

太空環境對振蕩器的威脅主要來自三個維度:宇宙輻射導致的器件性能衰退,極端溫度循環引發的頻率漂移,發射階段強沖擊造成的結構損傷.傳統地面級振蕩器在太空中的失效率高達87%,而Q-Tech通過"材料-結構-電路"三位一體的設計策略,構建了太空級多輸出CMOS時鐘振蕩器的技術壁壘.在抗輻射設計方面,Q-Tech晶振代理商采用輻射加固(Rad-Hard)工藝與抗單粒子效應(SEE)結構.以QT2021系列為例,其核心微控制器與數字補償電路均采用特種工藝制造,總劑量輻射耐受能力達到50krad(Si),單粒子鎖定(SEL)閾值≥75MeV-cm²/mg,遠超NASA對近地軌道衛星的40krad(Si)輻射要求.這種設計可有效抵御范艾倫輻射帶中的高能質子與電子沖擊,避免時鐘信號因輻射導致的瞬時中斷或永久失效.對于更遙遠的深空探測任務(如火星探測),Q-Tech還可提供定制化的QT625S/725S系列SAW振蕩器,其輻射耐受能力提升至300krad(Si),滿足地球同步軌道(GEO)及以外的極端輻射環境需求.

極端溫度適應能力是太空振蕩器的另一核心指標.Q-Tech通過雙模式溫度傳感補償技術與高溫穩定材料實現突破:QTCH系列采用AT/IT切割進口石英晶體,配合內置的自溫度傳感resonator,可在-55℃至+200℃的超寬溫度范圍內保持頻率穩定,頻率溫度系數控制在±40ppm至±250ppm,而傳統太空級振蕩器在+150℃以上即出現明顯性能衰減.在結構設計上,該系列采用密封陶瓷封裝與鍍金觸點,不僅能隔絕太空真空環境對內部電路的侵蝕,還能通過金屬外殼實現均勻熱傳導,避免局部溫度過高導致的CMOS輸出邏輯錯誤.針對太空電子系統多模塊同步需求,Q-Tech創新開發了多通道CMOS輸出晶振架構.不同于傳統振蕩器單路輸出的局限性,QT2021系列與QTCH系列均支持2-4路獨立CMOS邏輯輸出(1.8V/2.5V/3.3V可選),每路輸出均可提供10MHz-80MHz的可編程頻率信號,相位噪聲低至-135dBc/Hz(10kHz頻偏).這種架構可同時為衛星的通信模塊,導航系統,數據處理單元提供同步時鐘,減少設備間的信號延遲,提升整體系統響應速度.某航天研究所測試數據顯示,采用Q-Tech多輸出振蕩器的衛星數據處理系統,,同步精度提升3個數量級.數字補償算法:通過內置的輻射加固微控制器,實時采集晶體溫度數據并進行動態補償,在-40℃至+85℃范圍內頻率穩定度可達±20ppb,遠超傳統TCXO晶振(溫補晶體振蕩器)±100ppb的水平;低功耗設計:工作電流僅90mA(3.3V供電),待機電流低至5μA,較同精度OCXO減少90%以上功耗,特別適用于依靠太陽能供電的衛星系統;

多輸出靈活性:提供2路CMOS輸出與1路sinewave輸出,頻率覆蓋10MHz-80MHz,可滿足不同模塊的接口需求,輸出信號上升時間≤10ns,確保高速數據傳輸?shù)臅r(shí)序完整性.寬頻率范圍:支持1MHz-48MHz基本模式振蕩,每路CMOS輸出可獨立編程,滿足從低速傳感器到高速通信模塊的多樣化需求;高抗惡劣環境能力:采用鈦合金外殼與硅膠緩沖層,抗沖擊能力達2000g,抗振動性能(10-2000Hz)頻率偏差僅±2ppb,在月球車等表面探測設備中表現優異;超高輻射耐受:總劑量輻射耐受達300krad(Si),適用于木星,土星等強輻射環境的探測任務;6G低相噪晶振:10kHz頻偏下相位噪聲≤-135dBc/Hz,噪聲基底低至-168dBc/Hz,確保高頻通信信號的清晰度,減少信號干擾;電壓控制功能:QT725S系列支持±5V電壓控制,頻率牽引范圍達±100ppm,可實時補償多普勒效應導致的頻率偏移,提升深空通信的可靠性.
