美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振
頻率：8MHZ

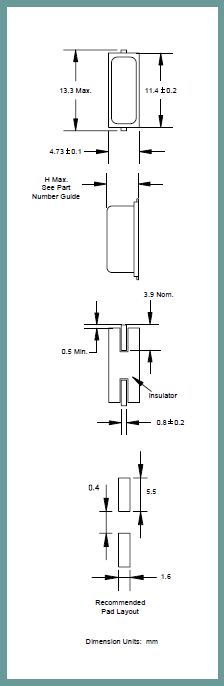

尺寸：13.3*4.7mm
美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振，ILSI晶振公司，外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.貼片晶振，HC49USM晶振，石英晶振，6G路由器晶振，無人機晶振，高品質晶振，低功耗晶振，智能穿戴設備晶振，北斗衛星晶振，無源晶振,二腳晶振。
訂購熱線：0755-27837162
美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振，ILSI晶振公司，外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.貼片晶振，HC49USM晶振，石英晶振，6G路由器晶振，無人機晶振，高品質晶振，低功耗晶振，智能穿戴設備晶振，北斗衛星晶振，無源晶振,二腳晶振。
美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振

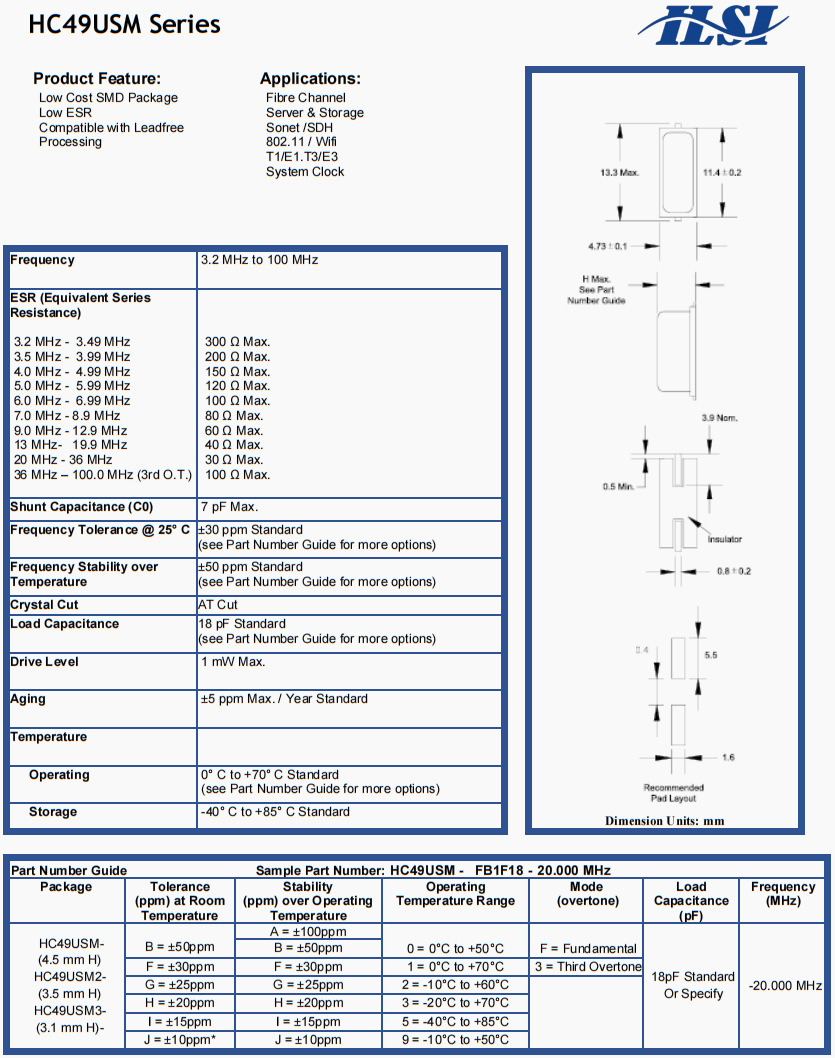

| 頻率 | 3.2 MHz to 100 MHz |
| 分流電容 | 7 pF Max. |
| 頻率容差 | ±30 ppm Standard(see Part Number Guide for more options) |
| 溫度范圍內的頻率穩定度 | ±50 ppm Standard(see Part Number Guide for more options) |
| 水晶切割 | AT Cut |
| 負載電容 | 18 pF Standard(see Part Number Guide for more options) |
| 驅動電平 | 1 mW Max. |
| 老化 | ±5 ppm Max. / Year Standard |
| 工作溫度范圍 | 0° C to +70° C Standard(see Part Number Guide for more options) |
| 儲存溫度范圍 | -40 ° C to +85° C Standard |
美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振
| 原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 | 工作溫度范圍 |
| HC49US-FF3F18-8.000MHZ | ILSI | HC49US | 8 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-27.000MHZ | ILSI | HC49USM | 27 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-8.000MHZ | ILSI | HC49USM | 8 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-3.6864MHZ | ILSI | HC49USM | 3.6864 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-4.0960MHZ | ILSI | HC49US | 4.096 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-18.4320MHZ | ILSI | HC49USM | 18.432 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF3F18-11.0592MHZ | ILSI | HC49USM | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-7.3728MHZ | ILSI | HC49USM | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-20.000MHZ | ILSI | HC49USM | 20 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-16.000MHZ | ILSI | HC49USM | 16 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-14.7456MHZ | ILSI | HC49USM | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-27.000MHZ | ILSI | HC49USM | 27 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-16.000MHZ | ILSI | HC49USM | 16 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-12.000MHZ | ILSI | HC49USM | 12 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-16.000MHZ | ILSI | HC49US | 16 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-20.000MHZ | ILSI | HC49US | 20 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-10.000MHZ | ILSI | HC49US | 10 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-24.000MHZ | ILSI | HC49US | 24 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-12.000MHZ | ILSI | HC49US | 12 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-25.000MHZ | ILSI | HC49US | 25 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-11.0592MHZ | ILSI | HC49US | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF5F18-4.9152MHZ | ILSI | HC49US | 4.9152 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-25.000MHZ | ILSI | HC49US | 25 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-4.0960MHZ | ILSI | HC49US | 4.096 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-16.000MHZ | ILSI | HC49US | 16 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-8.000MHZ | ILSI | HC49US | 8 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-3.6864MHZ | ILSI | HC49US | 3.6864 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-27.000MHZ | ILSI | HC49US | 27 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-4.000MHZ | ILSI | HC49US | 4 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-18.4320MHZ | ILSI | HC49US | 18.432 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-14.31818MHZ | ILSI | HC49US | 14.31818 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-7.3728MHZ | ILSI | HC49US | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF5F18-14.31818MHZ | ILSI | HC49US | 14.31818 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-10.000MHZ | ILSI | HC49US | 10 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF3F18-10.000MHZ | ILSI | HC49USM | 10 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-11.0592MHZ | ILSI | HC49USM | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF3F18-6.000MHZ | ILSI | HC49USM | 6 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-18.4320MHZ | ILSI | HC49USM | 18.432 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-12.000MHZ | ILSI | HC49USM | 12 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-25.000MHZ | ILSI | HC49USM | 25 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-4.000MHZ | ILSI | HC49USM | 4 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-3.6864MHZ | ILSI | HC49USM | 3.6864 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-24.000MHZ | ILSI | HC49USM | 24 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-4.000MHZ | ILSI | HC49USM | 4 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-25.000MHZ | ILSI | HC49USM | 25 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-27.000MHZ | ILSI | HC49US | 27 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF5F18-6.000MHZ | ILSI | HC49US | 6 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-7.3728MHZ | ILSI | HC49US | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-6.1440MHZ | ILSI | HC49US | 6.144 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-20.000MHZ | ILSI | HC49US | 20 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-14.7456MHZ | ILSI | HC49US | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-24.000MHZ | ILSI | HC49US | 24 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF5F18-18.4320MHZ | ILSI | HC49US | 18.432 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF3F18-4.9152MHZ | ILSI | HC49USM | 4.9152 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-14.7456MHZ | ILSI | HC49USM | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-20.000MHZ | ILSI | HC49USM | 20 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-10.000MHZ | ILSI | HC49USM | 10 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-8.000MHZ | ILSI | HC49USM | 8 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-7.3728MHZ | ILSI | HC49USM | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-4.9152MHZ | ILSI | HC49US | 4.9152 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF5F18-11.0592MHZ | ILSI | HC49US | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-14.7456MHZ | ILSI | HC49US | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF5F18-12.000MHZ | ILSI | HC49US | 12 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49US-FF3F18-3.6864MHZ | ILSI | HC49US | 3.6864 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-6.000MHZ | ILSI | HC49US | 6 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49US-FF3F18-4.000MHZ | ILSI | HC49US | 4 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
