領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振
頻率：11.0592MHZ
尺寸：7050mm
領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振，美國ILSI晶振，貼片晶振,ILCX04晶振,無源貼片晶振,石英晶振,貼片石英晶體,二腳晶振，插件晶振，歐美晶振，無源晶振，無人機晶振，電車充電槍晶振，石英晶體諧振器，工作溫度-40~85°C，網絡服務器晶振，存儲卡晶振，無線局域網晶振，光纖通道晶振.高品質晶振，進口晶振，艾爾西晶振，進口晶振，7050晶振，智能手機晶振，移動通信終端晶振，基準時鐘晶振，6G手機晶振,無線通信晶振,6G衛星晶振,貼片晶振,體積小,焊接可采用自動貼片系統,產品本身小型,表面貼片晶振,特別適用于有小型化要求的電子數碼產品市場領域,因產品小型,薄型優勢,耐環境特性,包括耐高溫,耐沖擊性等,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.
訂購熱線：0755-27837162
領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振，美國ILSI晶振，貼片晶振,ILCX04晶振,無源貼片晶振,石英晶振,貼片石英晶體,二腳晶振，插件晶振，歐美晶振，無源晶振，無人機晶振，電車充電槍晶振，石英晶體諧振器，工作溫度-40~85°C，網絡服務器晶振，存儲卡晶振，無線局域網晶振，光纖通道晶振.高品質晶振，進口晶振，艾爾西晶振，進口晶振，7050晶振，智能手機晶振，移動通信終端晶振，基準時鐘晶振，6G手機晶振,無線通信晶振,6G衛星晶振,貼片晶振,體積小,焊接可采用自動貼片系統,產品本身小型,表面貼片晶振,特別適用于有小型化要求的電子數碼產品市場領域,因產品小型,薄型優勢,耐環境特性,包括耐高溫,耐沖擊性等,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.

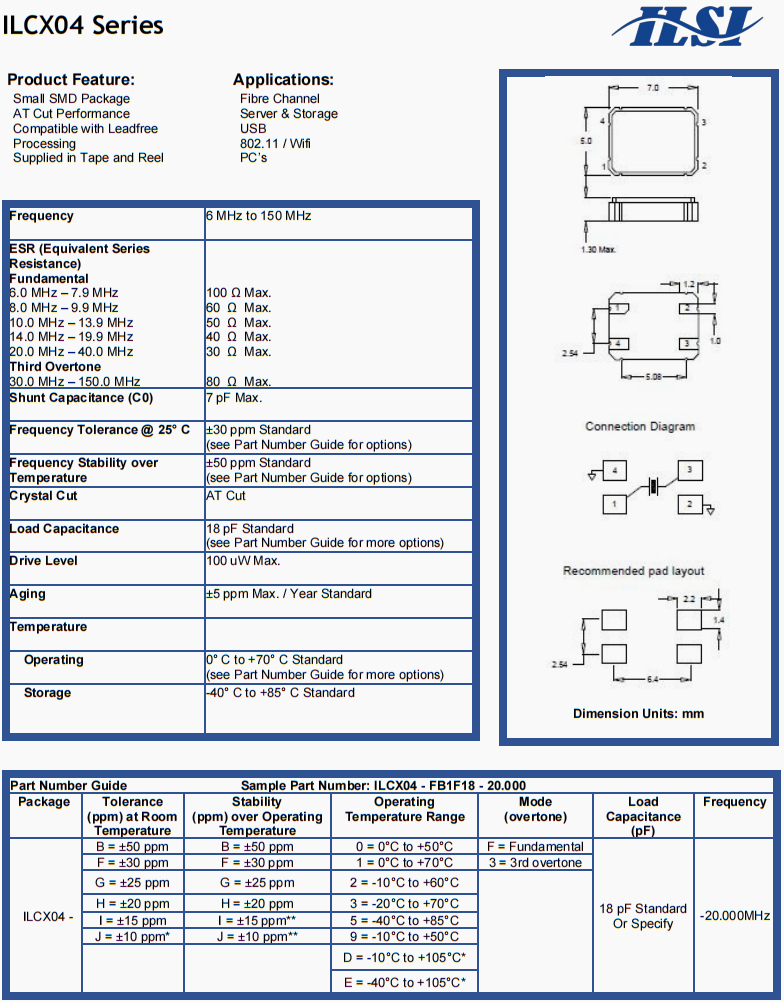

領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振
| 頻率 | 8MHz to 150MHz |
|
基礎等效串聯電阻
8MHz – 9.999999MHz 10MHz – 11.999999MHz 12MHz – 15.999999MHz 16MHz – 19.999999MHz 20MHz – 23.999999MHz 24MHz – 50MHz Third Overtone 30MHz – 150MHz |
100 Ohms Maximum
80 Ohms Maximum 60 Ohms Maximum 50 Ohms Maximum 40 Ohms Maximum 30 Ohms Maximum 80 Ohms Maximum |
| 分流電容 (C0) | 5pF Maximum |
| 頻率容差 (at 25°C) | ±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm |
| 溫度范圍內的頻率穩定度 | ±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm |
|
工作模式
8MHz – 50MHz 30MHz – 150MHz |
Fundamental
Third Overtone |
| 水晶切割 | AT Cut |
| 負載電容 | 8pF to 32pF or Specify |
| 驅動電平 | 100µW Maximum |
| 老化 | ±5ppm/Year Maximum |
| 工作溫度范圍 | See Part Number Guide |
| 儲存溫度范圍 | -40°C to +85°C |
領先全球的6G信號接收器晶振,進口ILSI晶體,ILCX04-BB3F12-11.0592MHz晶振
| 原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 | 工作溫度范圍 |
| HC49US-FF3F18-8.000MHZ | ILSI | HC49US | 8 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-27.000MHZ | ILSI | HC49USM | 27 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-8.000MHZ | ILSI | HC49USM | 8 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-3.6864MHZ | ILSI | HC49USM | 3.6864 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ILCX13-FF5F10-16.384MHZ | ILSI | ILCX13 | 16.384 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| ILCX13-FF5F10-12.000MHZ | ILSI | ILCX13 | 12 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| HC49US-FF3F18-4.0960MHZ | ILSI | HC49US | 4.096 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| IXA16-HBFF12-25.000MHZ | ILSI | IXA16 | 25 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-16.000MHZ | ILSI | IXA16 | 16 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HF5F12-12.000 MHZ | ILSI | IXA16 | 12 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HBFF12-24.000MHZ | ILSI | IXA16 | 24 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA20-HF5F12-16.000MHZ | ILSI | IXA20 | 16 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA18-FBFF8-16.000MHZ | ILSI | IXA18 | 16 MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| HC49USM-FF5F18-18.4320MHZ | ILSI | HC49USM | 18.432 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ILCX13-FF5F10-27.000MHZ | ILSI | ILCX13 | 27 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| ILCX13-FF5F10-20.000MHZ | ILSI | ILCX13 | 20 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| IXA16-HBFF12-18.432MHZ | ILSI | IXA16 | 18.432 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA18-FBFF8-10.000 MHZ | ILSI | IXA18 | 10 MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| IL3W-HX5F9-32.768KHZ | ILSI | IL3W | 32.768 kHz | - | ±20ppm | 9pF | -40°C ~ 85°C |
| IL3X2-HX5F7- 32.768 KHZ | ILSI | IL3X2 | 32.768 kHz | - | ±20ppm | 7pF | -40°C ~ 85°C |
| HC49USM-FF3F18-11.0592MHZ | ILSI | HC49USM | 11.0592 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-7.3728MHZ | ILSI | HC49USM | 7.3728 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF3F18-20.000MHZ | ILSI | HC49USM | 20 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| ILCX13-FF5F10-26.000MHZ | ILSI | ILCX13 | 26 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| HC49USM-FF3F18-16.000MHZ | ILSI | HC49USM | 16 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
| HC49USM-FF5F18-14.7456MHZ | ILSI | HC49USM | 14.7456 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-27.000MHZ | ILSI | HC49USM | 27 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-16.000MHZ | ILSI | HC49USM | 16 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| HC49USM-FF5F18-12.000MHZ | ILSI | HC49USM | 12 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ILCX19-FF5F10-27.120MHZ | ILSI | ILCX19 | 27.12 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| IXA16-HBFF12-12.288MHZ | ILSI | IXA16 | 12.288 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-27.000MHZ | ILSI | IXA16 | 27 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-26.000MHZ | ILSI | IXA16 | 26 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA12-FBFF10-27.000MHZ | ILSI | IXA12 | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| IXA16-HF5F12-18.432MHZ | ILSI | IXA16 | 18.432 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA12-FBFF10-32.000MHZ | ILSI | IXA12 | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| IXA16-HF5F12-28.63636MHZ | ILSI | IXA16 | 28.63636 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HF5F12-20.000MHZ | ILSI | IXA16 | 20 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HF5F12-12.288MHZ | ILSI | IXA16 | 12.288 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HF5F12-26.000MHZ | ILSI | IXA16 | 26 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA12-FBFF10-27.120MHZ | ILSI | IXA12 | 27.12 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| IXA12-FBFF10-24.576 MHZ | ILSI | IXA12 | 24.576 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| IXA10-HF5F10-26.000MHZ | ILSI | IXA10 | 26 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA10-HF5F10-27.000MHZ | ILSI | IXA10 | 27 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA10-FBFF10-26.000MHZ | ILSI | IXA10 | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| ILCX13-FF5F10-25.000MHZ | ILSI | ILCX13 | 25 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| ILCX19-FF5F10-54.000MHZ | ILSI | ILCX19 | 54 MHz | ±30ppm | ±30ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-20.000MHZ | ILSI | IXA12 | 20 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-24.576MHZ | ILSI | IXA12 | 24.576 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-24.000MHZ | ILSI | IXA12 | 24 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-32.000MHZ | ILSI | IXA12 | 32 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-26.000MHZ | ILSI | IXA12 | 26 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA12-HF5F10-25.000MHZ | ILSI | IXA12 | 25 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA16-HBFF12-30.000MHZ | ILSI | IXA16 | 30 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-12.000MHZ | ILSI | IXA16 | 12 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-24.576MHZ | ILSI | IXA16 | 24.576 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA12-HF5F10-19.200MHZ | ILSI | IXA12 | 19.2 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA16-HBFF12-32.000MHZ | ILSI | IXA16 | 32 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| IXA16-HBFF12-13.560MHZ | ILSI | IXA16 | 13.56 MHz | ±50ppm | ±20ppm | 12pF | -40°C ~ 125°C |
| ILCX19-IH5F8-48.000MHZ | ILSI | ILCX19 | 48 MHz | ±20ppm | ±15ppm | 8pF | -40°C ~ 85°C |
| IXA16-HF5F12-30.000MHZ | ILSI | IXA16 | 30 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HF5F12-24.576MHZ | ILSI | IXA16 | 24.576 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA16-HF5F12-13.560MHZ | ILSI | IXA16 | 13.56 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
| IXA10-HF5F10-24.000MHZ | ILSI | IXA10 | 24 MHz | ±30ppm | ±20ppm | 10pF | -40°C ~ 85°C |
| IXA16-HF5F12-25.000MHZ | ILSI | IXA16 | 25 MHz | ±30ppm | ±20ppm | 12pF | -40°C ~ 85°C |
