AE809-N-H-2-2070-3R3-32M768000,Anderson品牌,6G無線模塊晶振,歐美進口晶振,Anderson晶振,AE 809有源晶振,AE809-N-H-2-2070-3R3-32M768000晶振,石英晶體振蕩器,2520晶振,貼片振蕩器,四腳貼片晶振,頻率32.768MHz,電壓3.3V,頻率穩定性20ppm,工作溫度-20~70°C,小體積晶振,高穩定性晶振,低功耗晶振,6G無線模塊晶振,數字設備晶振,便攜式設備晶振,存儲系統晶振.
AE809-N-H-2-2070-3R3-32M768000,Anderson品牌,6G無線模塊晶振規格表
項目
規格說明
額定頻率
32.768MHz
Enable
No Connect
輸出
HCMOS
工作溫度
-20℃~ +70℃
頻率穩定性
±20ppm
供電電壓
+3.3V
儲存溫度
-55℃~+125°C
輸入電流
5mA maximum (Based on Supply Voltage)
負載
15pf /10 TTL Gates
占空比
40% to 60% (45% to 55% optional)
上升和下降時間
(10% to 90%)15nS (maximum)
啟動時間
10 mS maximum
輸出電壓電平
High (Minimum) 90%Vcc
Low (Maximum) 10%Vcc

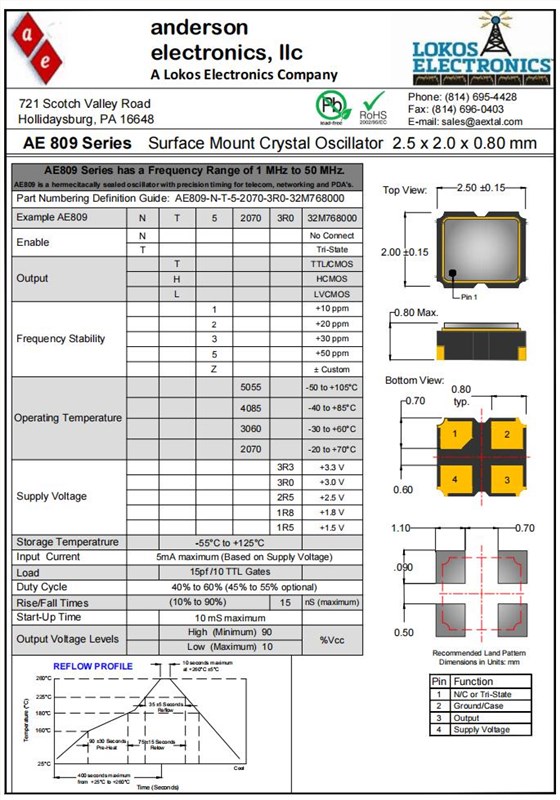

AE809-N-H-2-2070-3R3-32M768000,Anderson品牌,6G無線模塊晶振尺寸圖
