臺產TXC晶體,汽車雨刮控制器晶振,AS-11.0592MAHI-B晶振

產品簡介

臺產TXC晶體,汽車雨刮控制器晶振,AS-11.0592MAHI-B晶振，臺灣TXC晶振公司，金屬罐類型晶體HC-49SAS系列,特點:工作溫度范圍寬。惡劣環境下性能優越可靠。符合RoHS指令/不含Pb.貼片晶振,超小型晶振，小型汽車晶振，車載收音機晶振，實時時鐘晶振，汽車級晶振，無源晶振，車載USB晶振，高精度晶振，耐高溫晶振，高品質晶振，臺產晶振，49S晶振，插件晶振，低成本晶振，石英晶振

產品詳情

臺產TXC晶體,汽車雨刮控制器晶振,AS-11.0592MAHI-B晶振

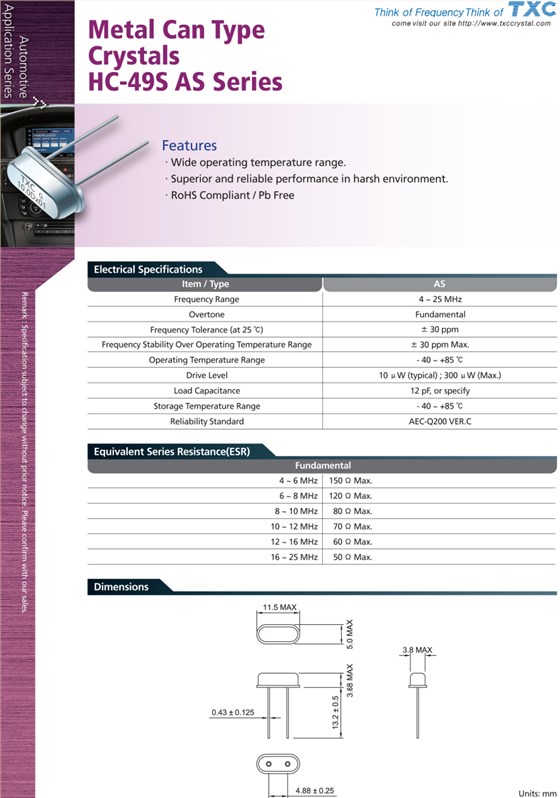

型號	AS
頻率范圍	4 MHz ~ 25 MHz
工作模式	Fundamental
頻率容差	± 30 ppm
溫度范圍內的頻率穩定度	± 30 ppm Max.
工作溫度	- 40 ~ +85 ℃
驅動電平	10 μW (typical) ; 300 μW (Max.)
負載電容	12 pF, or specify
儲存溫度范圍	- 40 ~ +85 ℃
可靠性標準	AEC-Q200VER.C

臺產TXC晶體,汽車雨刮控制器晶振,AS-11.0592MAHI-B晶振

TXC原廠編碼	生產商品牌	Series	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
AS-4.194304MAHE-B	TXC晶振	AS	4.194304MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AS-10.000MDHI-B	TXC晶振	AS	10MHz	±30ppm	±20ppm	16pF	-40°C ~ 85°C
AS-11.0592MAHI-B	TXC晶振	AS	11.0592MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AS-11.2896MAGQ-B	TXC晶振	AS	11.2896MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
AS-12.000MAQL-B	TXC晶振	AS	12MHz	±30ppm	±30ppm	22pF	-40°C ~ 105°C
AS-12.000MDHK-B	TXC晶振	AS	12MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AS-13.560MDIE-B	TXC晶振	AS	13.56MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
AS-14.31818MDHI-B	TXC晶振	AS	14.31818MHz	±30ppm	±20ppm	16pF	-40°C ~ 85°C
AS-16.000MAGE-B	TXC晶振	AS	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AS-16.9344MAGH-B	TXC晶振	AS	16.9344MHz	±50ppm	±30ppm	15pF	-40°C ~ 85°C
AS-3.579545MDHE-B	TXC晶振	AS	3.579545MHz	±30ppm	±20ppm	15pF	-40°C ~ 85°C
AS-4.000MAGJ-B	TXC晶振	AS	4MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-4.000MAHH-B	TXC晶振	AS	4MHz	±30ppm	±30ppm	15pF	-40°C ~ 85°C
AS-4.000MDGJ-B	TXC晶振	AS	4MHz	±50ppm	±20ppm	18pF	-40°C ~ 85°C
AS-4.000MDHK-B	TXC晶振	AS	4MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AS-4.000MEHK-B	TXC晶振	AS	4MHz	±30ppm	±10ppm	20pF	-40°C ~ 85°C
AS-8.000MAGE-B	TXC晶振	AS	8MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AS-8.000MAHI-B	TXC晶振	AS	8MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AS-3.579545MAHE-B	TXC晶振	AS	3.579545MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AS-4.000MAHK-B	TXC晶振	AS	4MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-8.000MAHK-B	TXC晶振	AS	8MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-10.000MAHI-B	TXC晶振	AS	10MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AS-11.2896MAHK-B	TXC晶振	AS	11.2896MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-13.225625MAHK-B	TXC晶振	AS	13.225625MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-13.560MAHE-B	TXC晶振	AS	13.56MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AS-14.31818MAHI-B	TXC晶振	AS	14.31818MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AS-16.000MAHK-B	TXC晶振	AS	16MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-16.9344MAHH-B	TXC晶振	AS	16.9344MHz	±30ppm	±30ppm	15pF	-40°C ~ 85°C
AS-20.500MAHQ-B	TXC晶振	AS	20.5MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AS-28.63636MAHE-B	TXC晶振	AS	28.63636MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AS-12.000MAHK-B	TXC晶振	AS	12MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-16.9344MAGI-B	TXC晶振	AS	16.9344MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AS16000001	TXC晶振	AS	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
