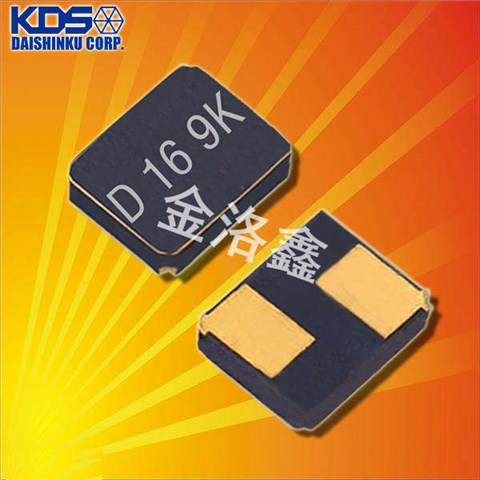

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振

產品簡介

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振,體積小巧且引腳布局適配主流車載PCB板設計,無需額外調整電路結構即可實現快速集成.8pF的負載電容參數與多數車載MCU,通信芯片的輸入電容需求高度匹配,有效降低信號傳輸損耗,減少電路調試成本.同時優化了高頻信號傳輸效率,避免因阻抗不匹配導致的信號反射問題,為車載電子系統的高速數據處理(如ADAS輔助駕駛數據傳輸)提供穩定支撐.

產品詳情

JLX-1

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振

依托KDS在晶振領域的精密制造工藝,DSX320GE-16.000M-8pF-50-50采用高純度石英晶體芯片與耐溫性極強的封裝材料,經過高溫老化,振動沖擊,濕度循環等多輪車規級可靠性測試.產品平均無故障工作時間(MTBF)遠超行業平均水平,可適應車載設備10年以上的長期使用周期,有效降低車輛售后維護成本.此外,其防潮,防腐蝕性能優異,即使在潮濕或高溫高濕的惡劣環境中(如發動機艙附近),仍能保持穩定的電氣性能.

JLX-2

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振

原廠型號Originalmodel：	DSX320GE-16.000M-8pF-50-50	品牌brand：	KDS大真空晶振
型號名稱Modelname：	DSX320GE	Size/Dimension尺寸	3225mm
Type系列：	MHZ Crystal	高度PackageHeight：	0.8mm
頻率frequency：	16.000M	溫度OperatingTemperature	-40+150℃
Frequency Stability頻率穩定度	50ppm	腳位Termination：	4Pad
frequencytolerance頻率容差	50ppm	封裝類型PackageType：	4-Smd
Loadcapacitance負載電容	8PF	最小包裝數MPQ：	3000

JLX-3

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振

DSX320G DSX321G DSX320GE 3225

DSX320GE-16.000M-8pF-50-50,KDS晶振,DSX320GE車規晶振

KDS	7BH03276A0S	DST1210A	1210四腳	32.768K
KDS	7BG03276A25	DST1610A	1610	32.768K
KDS	7BG03276A1X	DST1610A	1610	32.768K
KDS	1TJH090DP1A0006	DST1610A	1610	32.768K
KDS	1TJ125DR1AC054	DST210AC	2012	32.768K
KDS	7BF03276A3K	DST210AC	2012	32.768K
KDS	1TJE090FR1AH00C	DST410S	4115	32.768k
KDS	32ETJS070FJ	DT-26	206	32.768KHZ
KDS	1TC125DFNS004	DT-38	308	32.768k
KDS	1TC125DFNS008	DT-38	308	32.768KHZ
KDS	1TC125JHNS010	DT-38	308	32.768KHZ
KDS	1ZZNAE38400AB0A	DSX211SH	2016	38.400M
KDS	7AE01200A00	DSX221G	2520	12.000M
KDS	7AD00800A1Y	DSX321G	3225	8.000M
KDS	1C208000CE0R 汽車	DSX321G	3225	8.000M
KDS	7AD00800A1X汽車	DSX320GE	3225	8.000M
KDS	1ZCM08000EE0A汽車	DSX320G	3225	8.000M
KDS	1C208000EZ0G汽車	DSX321G	3225	8.000M
KDS	1N210000EE0X	DSX321G	3225	10.000M
KDS	1C213080CC0A	DSX321G	3225	13.080M
KDS	1C232000ABOV	DSX321G	3225	32.000M
KDS	1N254000BB0M	DSX321G	3225	54.000M
KDS	1ZCM12000BC0A	DSX320G	3225	12.000M
KDS	1C216000EE0AW	DSX321G	3225	16.000M
KDS	1N216000EE0BE	DSX321G	3225	16.000M
KDS	1N238400AB0C	DSX321G	3225	38.400M
KDS	1C220000EE0BF	DSX321G	3225	20.000M
KDS	1C220000AA0K	DSX321G	3225	20.000M
KDS	1C224000BE0K	DSX321G	3225	24.000M
KDS	7AD02500A4K	DSX321G	3225	25.000M
KDS	1N225000BC0CT	DSX321G	3225	25.000M
KDS	1N225500CC0A	DSX321G	3225	25.500M
KDS	1P227120BE0A	DSX321G	3225	27.120M
KDS	1BASAMPLE	DSX321G	3225	27.000M
KDS	1N224000BC0BS	DSX321G	3225	24.000M
KDS	1C224000AA0AD	DSX321G	3225	24.000M
KDS	7AD01228A0H	DSX321G	3225	12.288M
KDS	7AD02400A3D	DSX321G	3225	24.000M
KDS	7AD04800A0T	DSX321SH	3225	48.000M
KDS	7AF05000A0B	DSX211G	2016	50.000M
KDS	7BG03276A2X	DST1610A	1610	32.768KHZ
KDS	7FD05000A0S	DSO321SR	3225	50.000M
KDS	1N228636AB0B	DSX321G	3225	28.63636M
KDS	1TJG090DP1AC015	DST210AC	2012	32.768K
KDS	1XSE100000AR30	DSO321SR	3225	100.000M
KDS	1XSF10000AH	DSO221SH	2520	10.000M
KDS	CW08000EK3B	DSX151GAL	11.8*5.5	8.000M
KDS	1AJ160005BE	SMD-49		16.000M
KDS	1AJ245763ED	SMD-49	11*4.6	24.576M
KDS	1AC080005BM	AT-49	11*4.6	8.000M
KDS	SB103CE1MM	SINGLE
KDS	1RAK38400CRB	DSR211STH	2016	38.400M
KDS	7FG00003A03	DSO1612AR	1612	32.768KHZ
KDS	1XSF016000EH	DSO221SHF	2520	16.000M
KDS	7FE02496A00	DSO221SX	2520	24.96M
KDS	7EF01000A03	DSB211SDN	2016	10.000M
KDS	1XXD26000MLP	DSB211SDN	2016	26.000M
KDS	1XXD40000PDA	DSB211SDN	2016	40.000M
KDS	7EF01600A00	DSB211SDN	2016	16.000M
KDS	1XXD52000PBA	DSB211SDN	2016	52.000M
