Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振

產品簡介

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.

產品詳情

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振特點：

-帶停止功能的高穩定性振蕩器3.2x 2.5mm

- LVCMOS / HCMOS兼容輸出

-穩定性適合無線應用（藍牙、WIFI等）

-可變電源電壓1.8伏~ 3.3伏

-低相位抖動，無PLL

-接縫密封陶瓷/金屬封裝

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

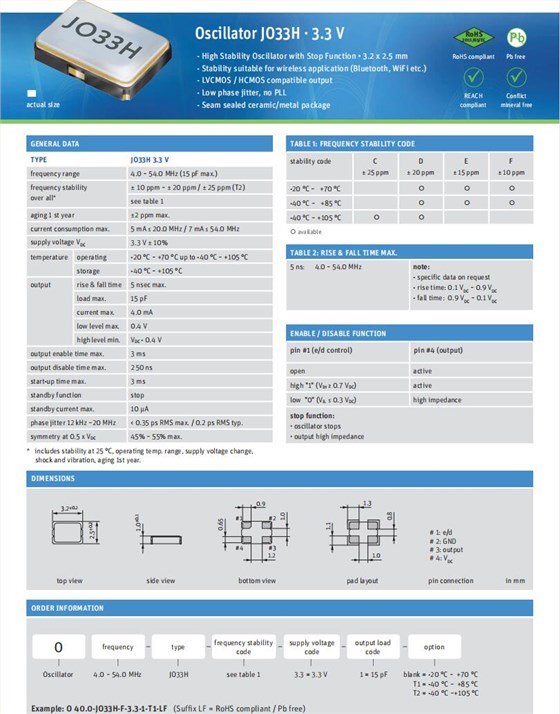

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振參數表

型號		JO33H
頻率		40MHz
頻率穩定性		± 15 ppm
電流消耗		5 mA ≤ 20.0 MHz / 7 mA ≤ 54.0 MHz
電源電壓		3.3V
工作溫度		-40°C~ +105 °C
儲存溫度		-40°C ~ +105°C
上升下降時間		5 ns max
輸出負載		15 pF
最大啟動時間		3 ms
最大待機電流		10 µA
相位抖動:12 kHz ~20 MHz		< 0.35 ps RMSmax
0.5 x VDC時的對稱性		45% ~ 55% max.

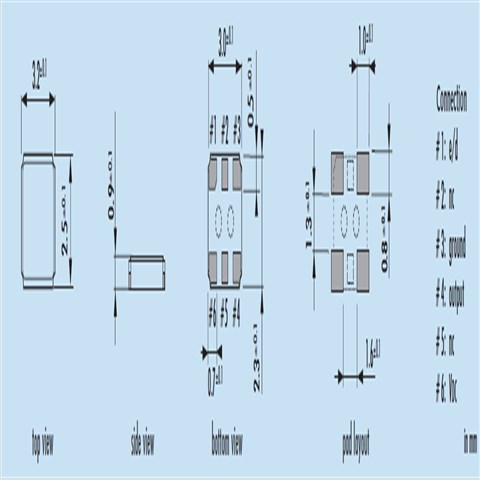

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振尺寸圖
