406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf
頻率：27MHz
尺寸：6.0mm x 3.5mm
406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf,406C35B27M00000晶振,6035mm晶振,CTS石英晶振,頻率27MHz,負載13pf,工作溫度-20~70°C,陶瓷晶振,四腳SMD晶振,無線通信晶振,寬帶接入晶振,測試和測量設備晶振,計算機外圍設備晶振,便攜式設備晶振.
訂購熱線：0755-27837162
406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf,406C35B27M00000晶振,6035mm晶振,CTS石英晶振,頻率27MHz,負載13pf,工作溫度-20~70°C,陶瓷晶振,四腳SMD晶振,無線通信晶振,寬帶接入晶振,測試和測量設備晶振,計算機外圍設備晶振,便攜式設備晶振.
406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 特征
1.標準6.0mm x 3.5mm陶瓷表面貼裝封裝 基本晶體設計
2.頻率范圍8 - 52MHz 頻率公差±30ppm標準 頻率穩定性±50ppm標準 工作溫度-40℃~ +85℃
3.穩定的頻率過溫和驅動電平 膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準
4.406型是一種接縫密封陶瓷封裝石英諧振器，提供卓越的性能廣泛的應用，包括;無線通信、寬帶接入、WLAN/WiMax/WIFI，測試和測量，便攜式設備和計算機外圍設備
406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 參數
| 項目 | 數值 | ||
| 頻率 | 27MHz | ||
| 操作模式 | Fundamental | ||
| 晶體切割 | AT-Cut | ||
| 工作溫度 | -20°C to +70°C | ||
| 保存溫度 | -40°C to +100°C | ||
| 頻率公差 @ +25°C | ± 30PPM | ||
|
工作溫度范圍內的頻率穩定性 ( ref. to +25°C) |
± 50PPM | ||
| 等效串聯電阻(R1) | 45 Ω | ||
| 并聯電容 (C0) | 5.0pF Typical, 7.0pF Maximum | ||
| 負載電容 (CL) | 13 pF | ||
| 激勵功率 | 200 μW Max | ||
| 老化 @ +25°C | ±3ppm/yr Typical | ||
| 絕緣電阻 | 500M Ohms @ DC 100V | ||

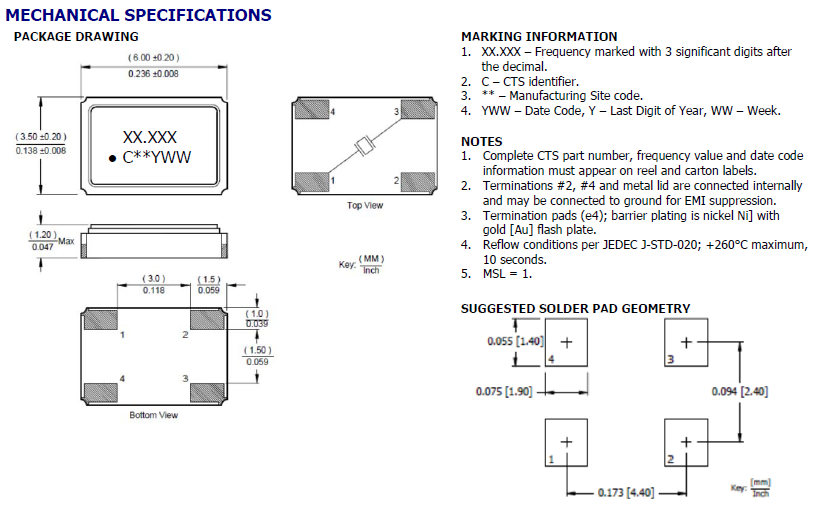

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | ESR電阻 | 工作溫度 |
| 406C35B10M24500 | CTS 晶振 | 406 | 10.245MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406I35D08M00000 | CTS 晶振 | 406 | 8MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
| 406C35B13M00000 | CTS 晶振 | 406 | 13MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35D12M00000 | CTS 晶振 | 406 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M00000 | CTS 晶振 | 406 | 14MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B24M57600 | CTS 晶振 | 406 | 24.576MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406I35D10M00000 | CTS 晶振 | 406 | 10MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 406I35D12M00000 | CTS 晶振 | 406 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 406C35D25M00000 | CTS 晶振 | 406 | 25MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B18M43200 | CTS 晶振 | 406 | 18.432MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406I35D14M31818 | CTS 晶振 | 406 | 14.31818MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
| 406C35B10M00000 | CTS 晶振 | 406 | 10MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B44M54500 | CTS 晶振 | 406 | 44.545MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B30M00000 | CTS 晶振 | 406 | 30MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35D24M00000 | CTS 晶振 | 406 | 24MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B27M00000 | CTS 晶振 | 406 | 27MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406I35D16M00000 | CTS 晶振 | 406 | 16MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406C35B13M22500 | CTS 晶振 | 406 | 13.225MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B13M22500 | CTS 晶振 | 406 | 13.225MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B13M22500 | CTS 晶振 | 406 | 13.225MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406I35D20M00000 | CTS 晶振 | 406 | 20MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D20M00000 | CTS 晶振 | 406 | 20MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D20M00000 | CTS 晶振 | 406 | 20MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D24M00000 | CTS 晶振 | 406 | 24MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D24M00000 | CTS 晶振 | 406 | 24MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D24M00000 | CTS 晶振 | 406 | 24MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D25M00000 | CTS 晶振 | 406 | 25MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D25M00000 | CTS 晶振 | 406 | 25MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406I35D25M00000 | CTS 晶振 | 406 | 25MHz | ±50ppm | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
| 406C35B12M28800 | CTS晶振 | 406 | 12.288MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B12M28800 | CTS晶振 | 406 | 12.288MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B12M28800 | CTS晶振 | 406 | 12.288MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B12M68800 | CTS晶振 | 406 | 12.688MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B12M68800 | CTS晶振 | 406 | 12.688MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B12M68800 | CTS晶振 | 406 | 12.688MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M31818 | CTS晶振 | 406 | 14.31818MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M85000 | CTS晶振 | 406 | 14.85MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M85000 | CTS晶振 | 406 | 14.85MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B14M85000 | CTS晶振 | 406 | 14.85MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
| 406C35B19M44000 | CTS晶振 | 406 | 19.44MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B19M44000 | CTS晶振 | 406 | 19.44MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B19M44000 | CTS晶振 | 406 | 19.44MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B20M48000 | CTS晶振 | 406 | 20.48MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B22M00000 | CTS晶振 | 406 | 22MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B32M76800 | CTS晶振 | 406 | 32.768MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B32M76800 | CTS晶振 | 406 | 32.768MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B32M76800 | CTS晶振 | 406 | 32.768MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B35M32800 | CTS晶振 | 406 | 35.328MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B35M32800 | CTS晶振 | 406 | 35.328MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |
| 406C35B35M32800 | CTS晶振 | 406 | 35.328MHz | ±50ppm | ±30ppm | 13pF | 40 Ohm | -20°C ~ 70°C |

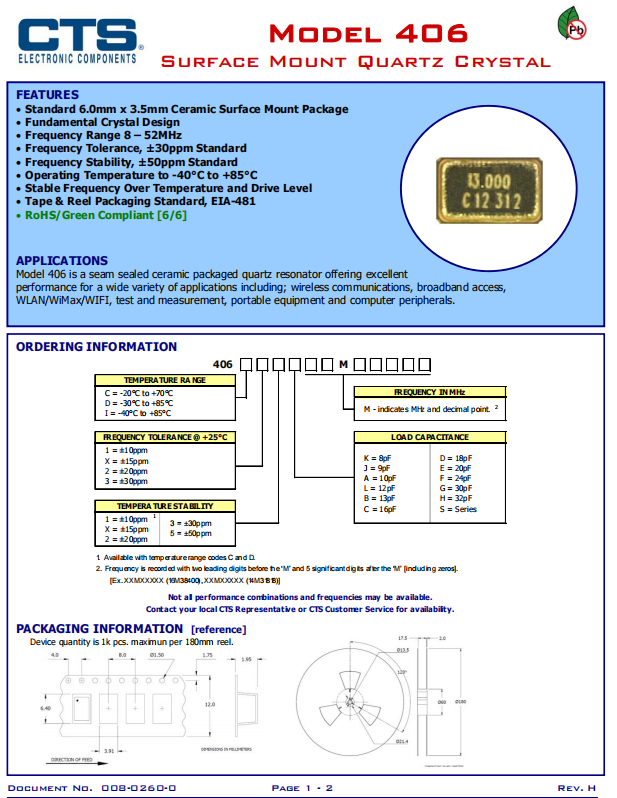

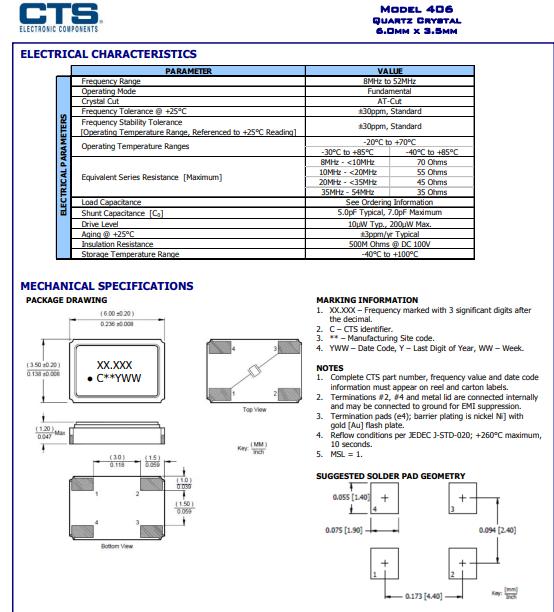

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 規格書與內部識別碼
