當前位置：首頁 » 貼片晶振 » Skyworks晶振 » 535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

prevnext

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

頻率：156.25 MHz

尺寸：7.0mm x 5.0mm

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振,在高端路由器,智能電視盒子等消費電子設備中,535BB156M250DG晶振以156.250MHz高頻輸出,為設備的高速數據處理,車載多媒體晶振信號解碼提供穩定時鐘源.LVDS差分接口相比傳統單端輸出,能減少信號衰減與串?dāng)_,提升設備信號傳輸效率,7050封裝的小巧尺寸,可靈活融入緊湊的產品內部結構,兼顧性能與設計便利性,助力消費電子產品實現輕薄化與高性能的平衡.

訂購熱線：0755-27837162

JLX-1

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

535BB156M250DG晶振具備汽車電子級的環境適應性,可承受-40℃~105℃(寬溫版本)的極端溫度變化,同時通過振動,沖擊等嚴苛測試,適配車載信息娛樂系統,ADAS輔助駕駛模塊等應用.其LVDS差分輸出能在汽車復雜的電路系統中,實現低噪聲,低損耗的時鐘信號傳輸,7050貼片晶振封裝的高集成度,也為車載PCB板的小型化設計提供支持,是汽車電子領域的高性價比時鐘解決方案.

JLX-2

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

原廠型號 Originalmodel：	535BB156M250DG	品牌brand：	Skyworks晶振
Manufacturer品牌	Skyworks晶振	OperatingTemperature溫度	-40°C ~ 85°C
Series型號	Si535	Current-Supply(Max)	98mA
Type類型	XO	PackageHeight高度	1.80mm
Frequency頻率	156.25 MHz	Termination 腳位	6pad
輸出方式 Output：	LVDS	PackageType 封裝類型	6-SMD
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±20ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	7.00mm x 5.00mm	最小包裝數MPQ：	1000

JLX-3

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

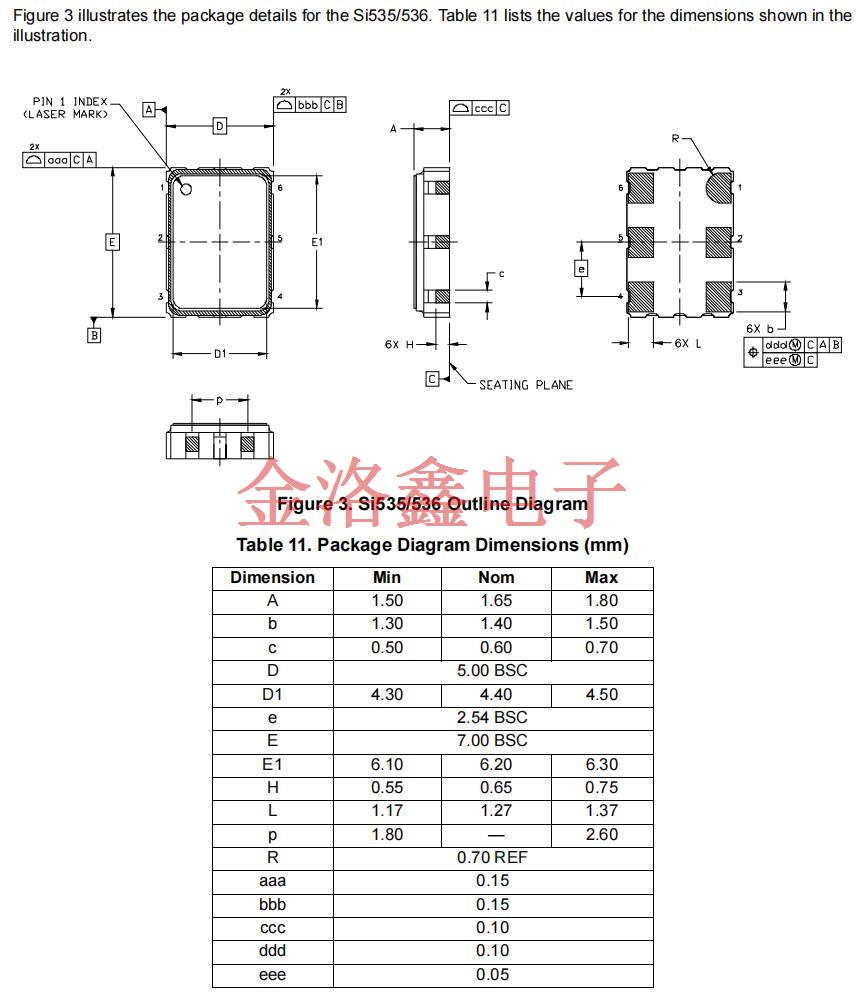

Si535-536

535BB156M250DG,思佳訊貼片晶振,LVDS差分晶振,7050石英晶振

510BBA156M250BAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA000330BAGR	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA125M000AAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA100M000AAG	Skyworks	Si511	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000AAG	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
530BB125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±20ppm	-40°C ~ 85°C
531BC125M000DG	Skyworks	Si531	XO	125 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
545BAA200M000BBG	Skyworks	Si545	XO	200 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
570BAB000544DG	Skyworks	Si570	XO	156.25 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
510BBA125M000AAGR	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAGR	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511ABA156M250AAGR	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
511BBA200M000BAGR	Skyworks	Si511	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510MCA50M0000AAGR	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511BCA160M000BAGR	Skyworks	Si511	XO	160 MHz	LVDS	3.3V	-	-40°C ~ 85°C
510KBA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA74M2500BAG	Skyworks	Si511	XO	74.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510BBA100M000BAG	Skyworks	Si510	XO	100 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510FBA125M000BAG	Skyworks	Si510	XO	125 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510KCA125M000BAG	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
511BBA000110BAG	Skyworks	Si511	XO	148.35165 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511FBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
511BBA148M500BAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA125M000BAG	Skyworks	Si511	XO	125 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	2.5V	±25ppm	-40°C ~ 85°C
510BBA200M000BAG	Skyworks	Si510	XO	200 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511JBA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511FCA25M0000BAG	Skyworks	Si511	XO	25 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511FCA100M000BAG	Skyworks	Si511	XO	100 MHz	LVDS	2.5V	±20ppm	-40°C ~ 85°C
511SBA156M250BAG	Skyworks	Si511	XO	156.25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
511JBA135M000BAG	Skyworks	Si511	XO	135 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
511JBA200M000BAG	Skyworks	Si511	XO	200 MHz	LVDS	1.8V	±25ppm	-40°C ~ 85°C
540BAA000274BBG	Skyworks	Si540	XO	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V	±20ppm	-40°C ~ 85°C
530BA125M000DG	Skyworks	Si530	XO	125 MHz	LVDS	3.3V	±50ppm	-40°C ~ 85°C
531BC106M250DG	Skyworks	Si531	XO	106.25 MHz	LVDS	3.3V	±7ppm	-40°C ~ 85°C
535AC100M000DG	Skyworks	Si535	XO	100 MHz	LVPECL	3.3V	±7ppm	-40°C ~ 85°C
510CBA25M0000BAGR	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000BAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510CBA100M000AAGR	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510GBA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	2.5V	±25ppm	-40°C ~ 85°C
510KBA125M000BAGR	Skyworks	Si510	XO	125 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250AAGR	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KBA28M6363BAG	Skyworks	Si510	XO	28.6363 MHz	CMOS	1.8V	±25ppm	-40°C ~ 85°C
511BBA106M250BAG	Skyworks	Si511	XO	106.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510KCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510KCB25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	1.8V	±20ppm	-40°C ~ 85°C
510CCA25M0000BAG	Skyworks	Si510	XO	25 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
510CCA100M000BAG	Skyworks	Si510	XO	100 MHz	CMOS	3.3V	±20ppm	-40°C ~ 85°C
511ABA156M250BAG	Skyworks	Si511	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
510CBA50M0000AAG	Skyworks	Si510	XO	50 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
510BBA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA148M500AAG	Skyworks	Si511	XO	148.5 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
511BBA156M250AAG	Skyworks	Si511	XO	156.25 MHz	LVDS	3.3V	±25ppm	-40°C ~ 85°C
510ABA156M250AAG	Skyworks	Si510	XO	156.25 MHz	LVPECL	3.3V	±25ppm	-40°C ~ 85°C
