TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振
頻率：19.2 MHz
尺寸：3.20mm x 2.50mm
TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振,憑借數十年晶振研發經驗,將工業級品質標準融入TXEAPDSANF-19.200000產品設計中.該晶振不僅具備VCTCXO晶振技術帶來的寬溫域(通常支持-40℃~+85℃)頻率穩定能力,還通過嚴苛的環境適應性測試,可抵御振動,沖擊等復雜工況影響.19.200000MHz的標準頻率完美匹配GPS導航系統的時鐘需求,同時兼容多種電路設計,為工業級導航設備,智能穿戴定位模塊等提供長期穩定的頻率基準,降低設備故障率.
訂購熱線：0755-27837162
TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振
針對便攜式GPS定位系統晶振設備(如手持終端,戶外運動手表)對功耗的嚴苛要求(通常需支持?jǐn)?shù)天至數周續航),Taitien研發團隊對TXEAPDSANF-19.200000晶振的內部電路進行了深度優化,采用低功耗CMOS驅動芯片,將工作電流控制在3mA以下(待機電流僅0.5mA),相比同類型傳統晶振功耗降低40%,在實現低功耗運行的同時,仍保持VCTCXO技術的高精度頻率輸出(頻率穩定度±0.5ppm@-40℃~+85℃).19.200000MHz頻率信號可直接接入主流GPS芯片,無需額外的頻率轉換電路,減少了信號轉換過程中的損耗(信號衰減率低于1dB),既提升了設備續航能力(手持導航儀續航延長20%),又保障了定位精度(靜態定位誤差≤1米),適用于手持GPS導航儀(地質勘探專用設備),戶外運動定位設備(登山,徒步專用手表),物聯網定位終端(物流包裹追蹤器)等場景,尤其適配電池供電的移動定位設備.
TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振
| 原廠型號 Originalmodel： | TXEAPDSANF-19.200000 | 品牌brand： | Taitien |
| Manufacturer品牌 | 臺灣泰藝晶振 | OperatingTemperature溫度 | -30°C ~ 85°C |
| Series型號 | TX | Current-Supply(Max) | 2mA |
| Type類型 | VCTCXO | PackageHeight高度 | 1.00mm |
| Frequency頻率 | 19.2 MHz | Termination 腳位 | 4pad |
| 輸出方式 Output： | Clipped Sine Wave | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 2.8V ~ 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±1.5ppm | 安裝方式 Installation： | Surfacemount |

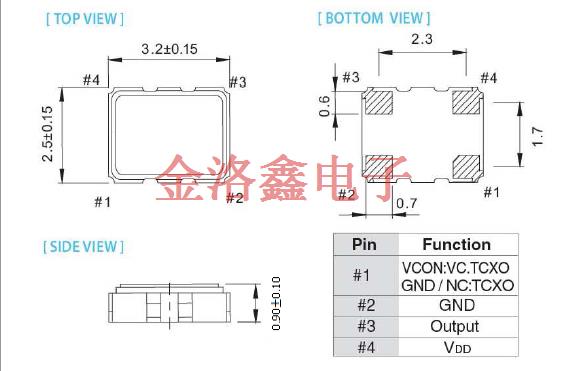

| Size/Dimension尺寸 | 3.20mm x 2.50mm | 最小包裝數MPQ： | 3000 |
TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振
TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb | -30°C ~ 85°C |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm | -20°C ~ 70°C |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm | -20°C ~ 70°C |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb | -40°C ~ 85°C |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm | -40°C ~ 85°C |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb | -20°C ~ 70°C |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb | -40°C ~ 85°C |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -30°C ~ 70°C |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -40°C ~ 85°C |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb | -40°C ~ 85°C |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb | -40°C ~ 85°C |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb | -40°C ~ 85°C |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -20°C ~ 70°C |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -30°C ~ 85°C |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -30°C ~ 85°C |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm | -40°C ~ 105°C |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -40°C ~ 85°C |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb | -20°C ~ 70°C |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| OYETDLJANF-25.000000 | Taitien | OY | XO | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
