TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振
頻率：38.4 MHz

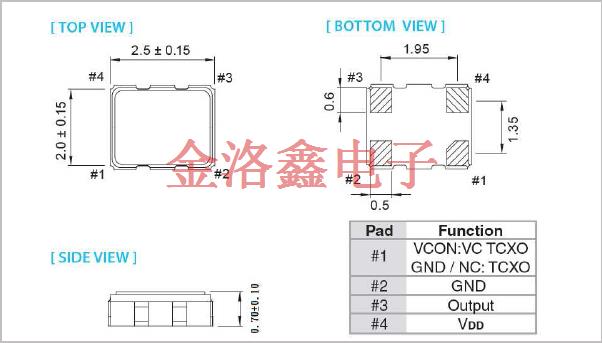

尺寸：2.50mm x 2.00mm
TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振,針對智能手機對通信信號穩定性的嚴苛要求,TYETBLSANF-38.400000晶振憑借TCXO技術,將頻率穩定度控制在±0.5ppm(典型值),有效抵消不同使用環境下的溫度波動(支持-30℃~+85℃寬溫域),確保5G/4G信號接收與傳輸?shù)倪B貫性.2520四腳貼片封裝不僅簡化了主板焊接工藝,還提升了元件與電路板的連接穩定性,適配主流智能手機的射頻模塊與基帶芯片,為高清通話,高速數據傳輸提供可靠頻率基準.
訂購熱線：0755-27837162
TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振
作為專為智能手機研發的高精度頻率元件,TYETBLSANF-38.400000搭載TCXO(溫補晶體振蕩器)技術,以38.400000MHz精準頻率為核心,可實時補償溫度變化對頻率的影響,確保手機通信,定位,多媒體播放等功能的時鐘信號穩定.其采用2520四腳貼片封裝,體積小巧(2.5mm×2.0mm),能靈活適配智能手機緊湊的主板布局,同時低功耗設計滿足手機續航需求,是保障智能手機應用晶振高效運行的關鍵時鐘組件.
TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振
| 原廠型號 Originalmodel： | TYETBLSANF-38.400000 | 品牌brand： | Taitien泰藝晶振 |
| Manufacturer品牌 | Taitien | OperatingTemperature溫度 | -40°C ~ 85°C |
| Series型號 | TY | Current-Supply(Max) | 2.5mA |
| Type類型 | TCXO | PackageHeight高度 | 0.80mm |
| Frequency頻率 | 38.4 MHz | Termination 腳位 | 4pad |
| 輸出方式 Output： | Clipped Sine Wave | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 2.8V ~ 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±1ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 2520微型貼片晶振 | 最小包裝數MPQ： | 3000 |
TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振
TYETBLSANF-38.400000,TCXO晶振,智能手機晶振,2520四腳貼片晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb | -30°C ~ 85°C |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm | -20°C ~ 70°C |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm | -20°C ~ 70°C |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb | -40°C ~ 85°C |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm | -40°C ~ 85°C |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb | -20°C ~ 70°C |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb | -40°C ~ 85°C |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb | -40°C ~ 85°C |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -30°C ~ 70°C |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb | -40°C ~ 85°C |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb | -40°C ~ 85°C |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb | -40°C ~ 85°C |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb | -40°C ~ 85°C |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -20°C ~ 70°C |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -30°C ~ 85°C |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -30°C ~ 85°C |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm | -40°C ~ 85°C |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -30°C ~ 85°C |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -40°C ~ 85°C |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -30°C ~ 85°C |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -40°C ~ 85°C |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm | -20°C ~ 70°C |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | -20°C ~ 70°C |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm | -40°C ~ 105°C |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb | -40°C ~ 85°C |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb | -40°C ~ 85°C |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb | -20°C ~ 70°C |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm | -40°C ~ 85°C |
| OYETDLJANF-25.000000 | Taitien | OY | XO | 25 MHz | CMOS | 3.3V | ±25ppm | -40°C ~ 85°C |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm | -30°C ~ 85°C |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm | -40°C ~ 85°C |
