X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz
頻率：26MHz
尺寸：1.6mm x 1.2mm
X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz,X3AEEJNANF-26.000000晶振,臺灣Taitien晶振,1612mm晶振,頻率26MHz,超小型晶振,高精度晶振,低老化晶振,石英晶體諧振器,四腳貼片晶振,智能手機晶振,無線網絡晶振,藍牙模塊晶振,辦公自動化晶振,多媒體影音設備晶振.
X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz,X3AEEJNANF-26.000000晶振,臺灣Taitien晶振,1612mm晶振,頻率26MHz,超小型晶振,高精度晶振,低老化晶振,石英晶體諧振器,四腳貼片晶振,智能手機晶振,無線網絡晶振,藍牙模塊晶振,辦公自動化晶振,多媒體影音設備晶振.

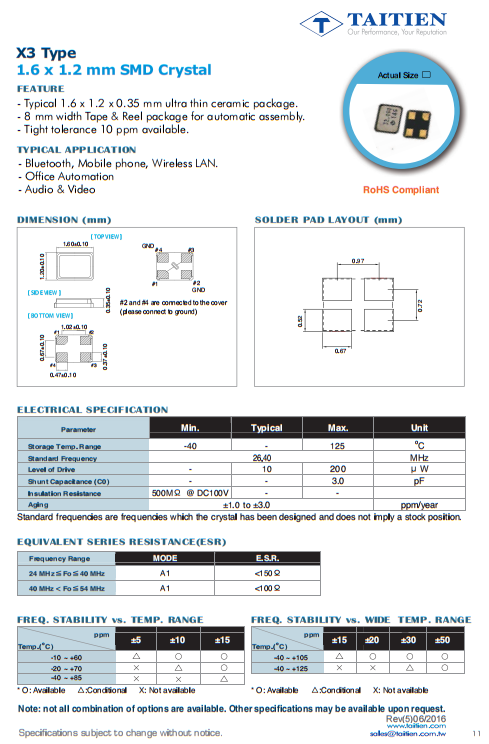

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz 參數
Taitien晶振規格
單位
X3晶振
石英晶振基本條件
標準頻率
f_nom
26MHz
標準頻率，可提供其他頻率
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~+105℃
標準溫度
激勵功率
DL
100μW Max.
推薦:1μW ～ 100μW
頻率公差
f_— l
頻率溫度特征
f_tem
±20ppm
超出標準的規格請聯系我們.
負載電容
CL
12pF
超出標準說明,請聯系我們.
串聯電阻(ESR)
R1
150Ω max
@25°C
頻率老化
f_age
±3×10-6/year Max.
+25°C,第一年

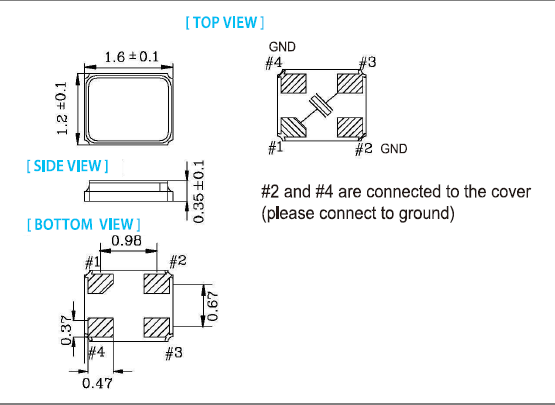

X3AEEJNANF-26.000000-臺灣Taitien晶振-1612mm-26MHz 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 工作溫度 | 尺寸 |
| X3AEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-25.000000 | Taitien | X3 | 25MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-28.000000 | Taitien | X3 | 28MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-29.000000 | Taitien | X3 | 29MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-29.000000 | Taitien | X3 | 29MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.320000 | Taitien | X3 | 27.32MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-33.000000 | Taitien | X3 | 33MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-27.000000 | Taitien | X3 | 27MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-40.000000 | Taitien | X3 | 27.12MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-40.000000 | Taitien | X3 | 40MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-46.000000 | Taitien | X3 | 46MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-44.000000 | Taitien | X3 | 44MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-48.000000 | Taitien | X3 | 48MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-48.000000 | Taitien | X3 | 48MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-52.000000 | Taitien | X3 | 52MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
